E Series



DLC PREMIUM, Lighting Facts, FCC,ROHS, ETL Listed

NEMA 4X IP66

UL1598/UL1598A/UL844

CSA C22.2 No 137/No.250.0

Class I, Division 1, Groups C, D

Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups E, F, G

Class III

Features

High efficacy: up to 140lm/W

CRI>80

Surface mounting and pendant installations

Wide and narrow optics for uniform illumination

Copper free aluminum

High vibration resistance

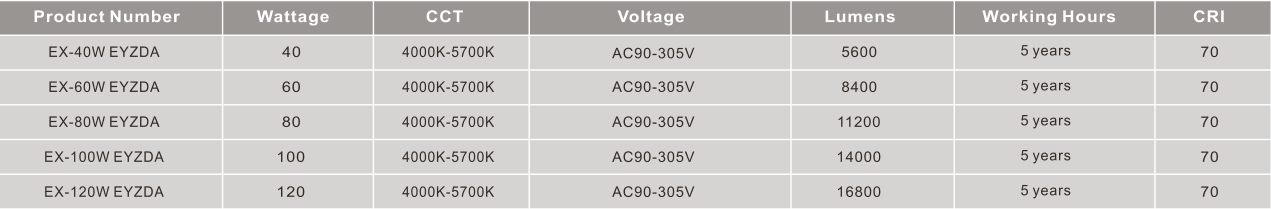

Model Specification


Warranty

• 5 Year warranty Standard or any other warranty period specified in the contract for the product from the date of purchase:
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labor, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.



More info. refer to download...

Name *
Name

Applications

This luminaire can be used as spot light, down light and tunnel light, low bay, high bay which can provide general illumination in hazardous locations, such as:

1. Oil refineries and  Gas stations

2. Oil and gasoline loading docks

3. Distilleries

4. Painting manufacturing plants

5. Pumping stations

6. Mines

7. Vessels

8. Other high humility, high temperature, dusty locations





Hazardous Locations Light-E.pdf

Type E Ex-Proof light installation instructions.pdf
